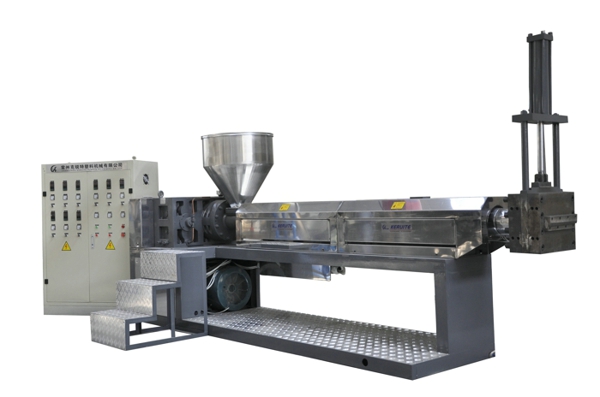

色母造粒機組
COLOR MASTE BATCH PELLETIZING LINE
用途：適用于各種塑料的有機，無機填充，可加工有色母粒，功能母粒，特種母粒等，具有塑料改性，增強、增韌、阻燃、著色、揮脫等多種用途，可實現(xiàn)多元體系共混。
特點：塑化混煉均勻，設有排氣裝置，能充分去除原料中水分及揮發(fā)氣體，是、使粒料顆粒飽滿、外形美觀。一次拉條造粒即可達到母粒工藝要求。
Uses：applicable to all kinds of plastic organic, inorganic filler, can be processing
Of color master batch, functional master batch, specialty master batch, etc
Has the plastic modification, enhancement, Toughening, Flame retardant, Shading, Waved off a variety of purposes, such as blending can realize multiple
System.
Characteristics: mixing uniform plasticizing, the exhaust device, can fully remove the moisture and volatile gas in the raw material, make the aggregate particle
satiated, beautiful appearance. A brace palletizing master batch process requirement.
型號
Model |
螺桿直徑
Screw dia
（r/min） |
長徑比
Long diaratio |
產(chǎn)量
Output（kg/h） |
螺桿轉速
Screw rotate
Speed（r/min） |
功率
Power（kw） |
|
KRT-SJP-45 |
φ45 |
32-40:1 |
25-35 |
30-120 |
11-15 |
|
KRT-SJP-65 |
φ65 |
32-40:1 |
50-80 |
30-120 |
15-22 |
|
KRT-SJP-80 |
φ80 |
32-40:1 |
80-120 |
30-120 |
22-37 |
|
|
|
